Spring 2016: 3DoT Spider-Bot Mechanism Research

BY: Omar Mouline ( Project Manager)

Introduction

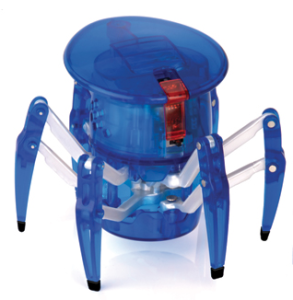

The 3Dot David project mechanical requirement was to build a small size spider bot that can walk using two motors. When the project was assigned to us, We were given The hex bug 1 in the picture below  as a prototype. Screen Shot 2016-04-09 at 2.15.27 PM

Related requirements

  1. The 3DoT David shall be a low cost project with a total cost that does not exceed $79.95, which includes the cost for manufacturing, PCB, battery, and other components.

Research different mechanisms of spider bots

After conducting some research on other types of mechanisms, the first design that attracted my attention was a toy named  “Combat Creature”. The Combat Creature is a discontinued toy that i believed was cooler that the hex bug to build.

Combat creature

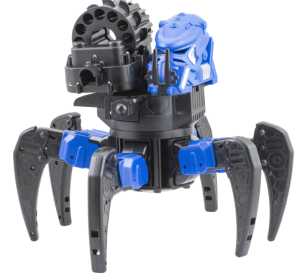

Screen Shot 2016-04-09 at 3.25.07 PM A 3 part video Youtube video of disassembling the toy was found explaining the mechanism and showing the different parts of the robot: Part 1Part 2, and Part 3.

Jerry Mantzel mechanism

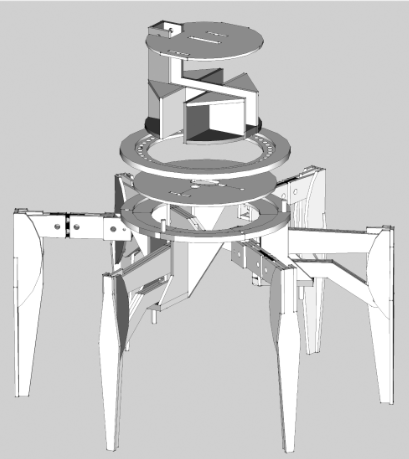

Screen Shot 2016-04-09 at 3.29.37 PM

Jerry Mantzel project was to build a Giant Version  of the Combat Creature. Inspired by the combat creature, he adjusted the design of the toy to make a Rapid Prototype as shown in Video.  Adjustments were made To have an easy prototype to 3D print as shown in this  Video.

Hex Bug 1 Mechanism

Screen Shot 2016-04-09 at 3.57.35 PM

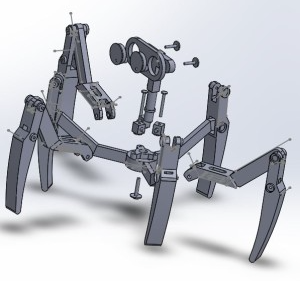

This prototype is the design that was assigned for our project. The picture on top show the exploded view of the cam based mechanism of the spider bot.

Hex Bug 2 Mechanism

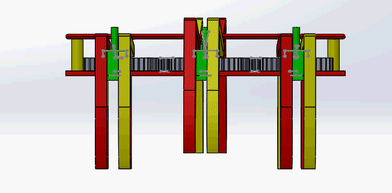

11oych Gear_view Side_view-1

This design is the new design we are using for our project. It is less complex, gave us less printing time, All the parts can be 3d printed, and reduce the cost of manufacturing.

Joe Clan Mechanism

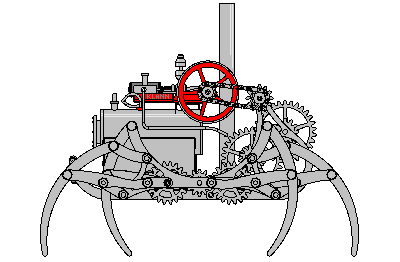

steamspiderOn this design the Spider Bot move side ways. I found a lot of information in this Page. The Professor provided me with more links for this model:

Two motors controlled transparent Joe Clan

Leg Movement Mechanism

Phone Controlled based Mechanical Joe Clan Spider

Legs movement

Theo Jansen Mechanism

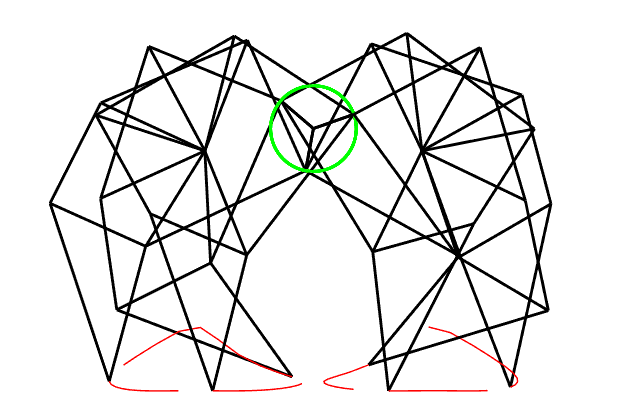

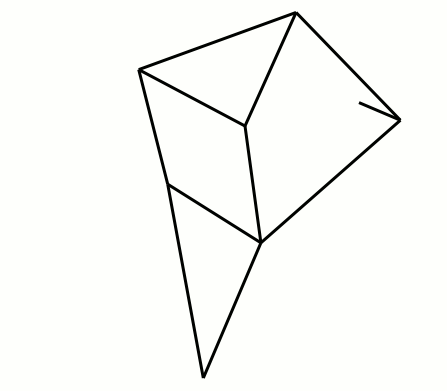

Strandbeest--Full-Walking-AnimationStrandbeest-Walking-Animation

Links That explain more the mechanism of this Spider Bot:

Details on Theo Jansen mechanism

Adam Savage’s One Day Builds

A Theo Jansen´s mechanism

Theo Jansen style robot leg

Walking machine in the middle of construction

Baling Wire Walker

Conclusion

After looking on all of these design, we started working on the Hex Bug mechanism 1 and on process of designing it on solid works we quickly started running to problems. Trying to solve all the problems the main issue we had is the 3D printing quality for the small joints and some other parts. for that small design we needed precision in order to get the result we want specially for an important part like the joint. We then decided in the tenth week as a team too change the design to the Hex bug mechanism 2 which is less complex. Gladly, we were able to make and achieve all the requirements.
